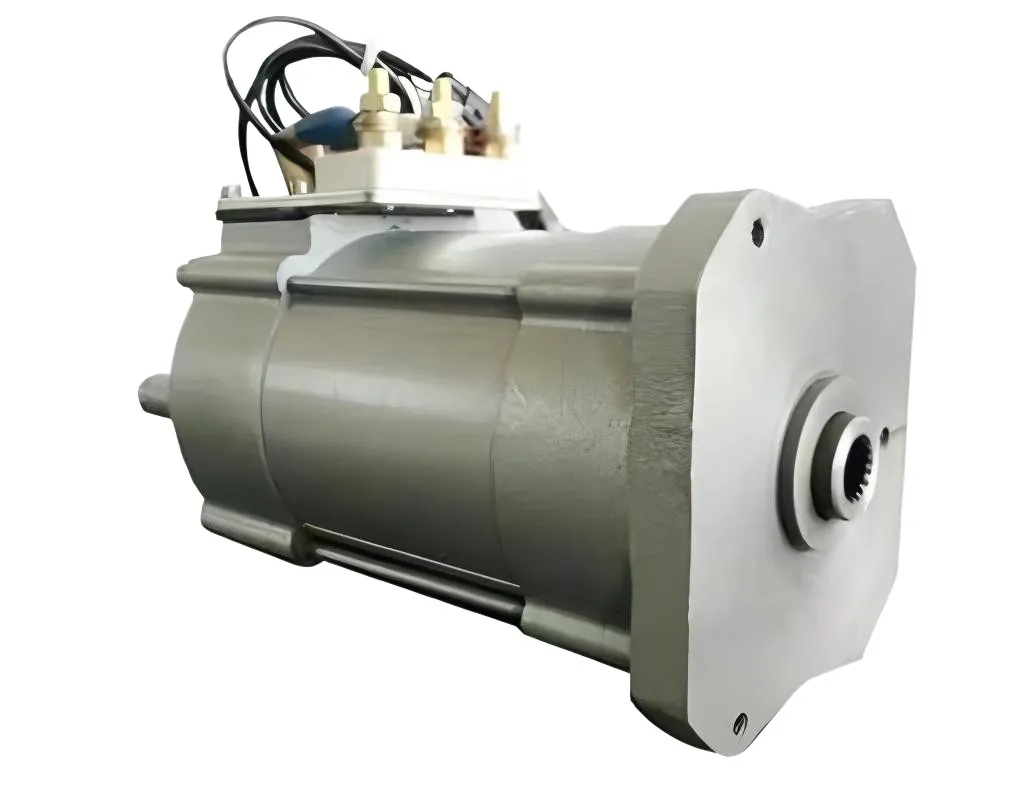

JY-AC-1.5KW
LSV & Trike Specialist
Peak Power
3.0 kW
Rated Torque
4.78 Nm
Max Speed
3000 RPM
Voltage
60 V

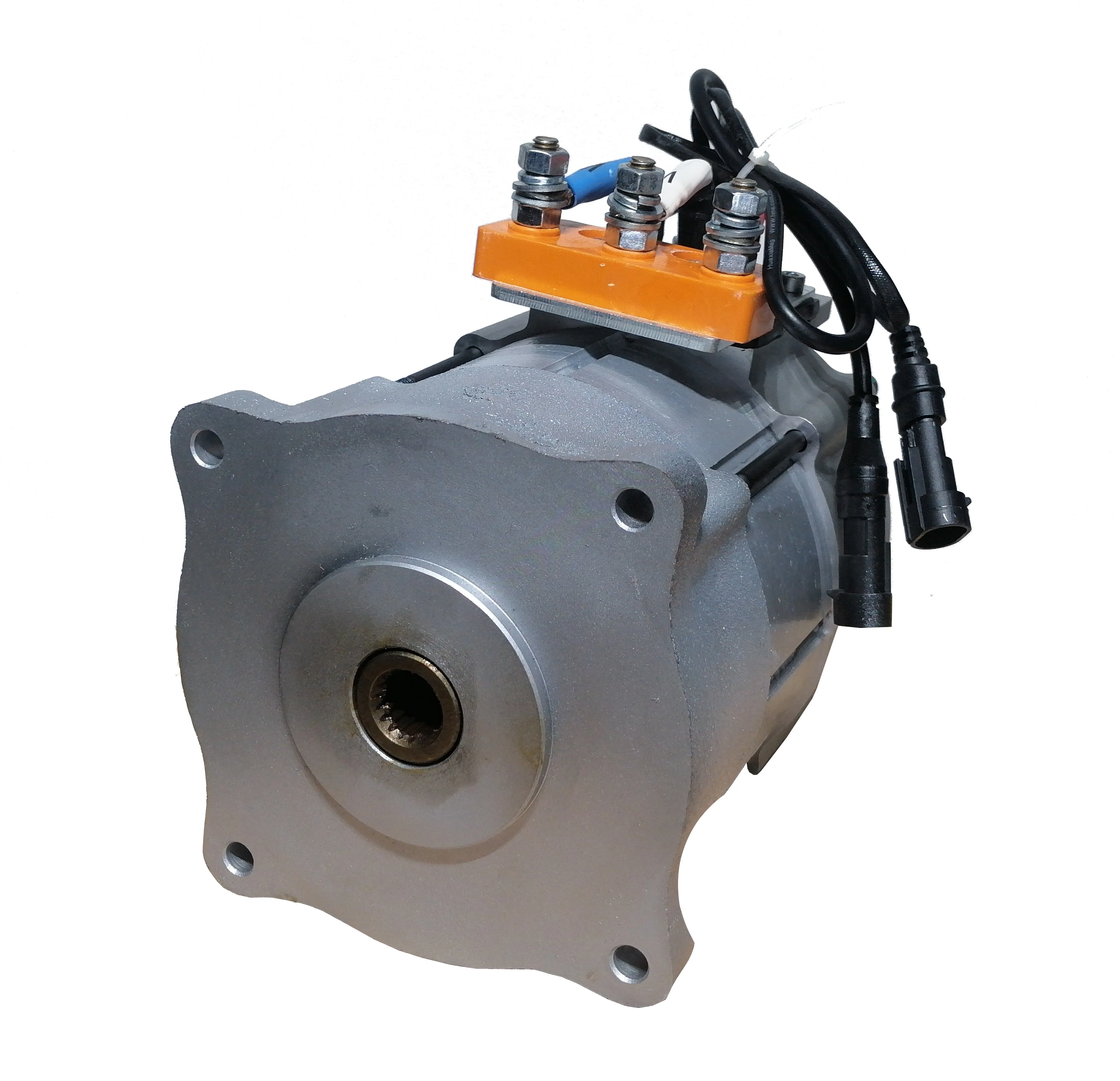

JY-AC-2.0KW
Scrubber Pro Series
Peak Power
4.0 kW
Peak Torque
140 Nm
Max Speed
6500 RPM
Voltage
72 V

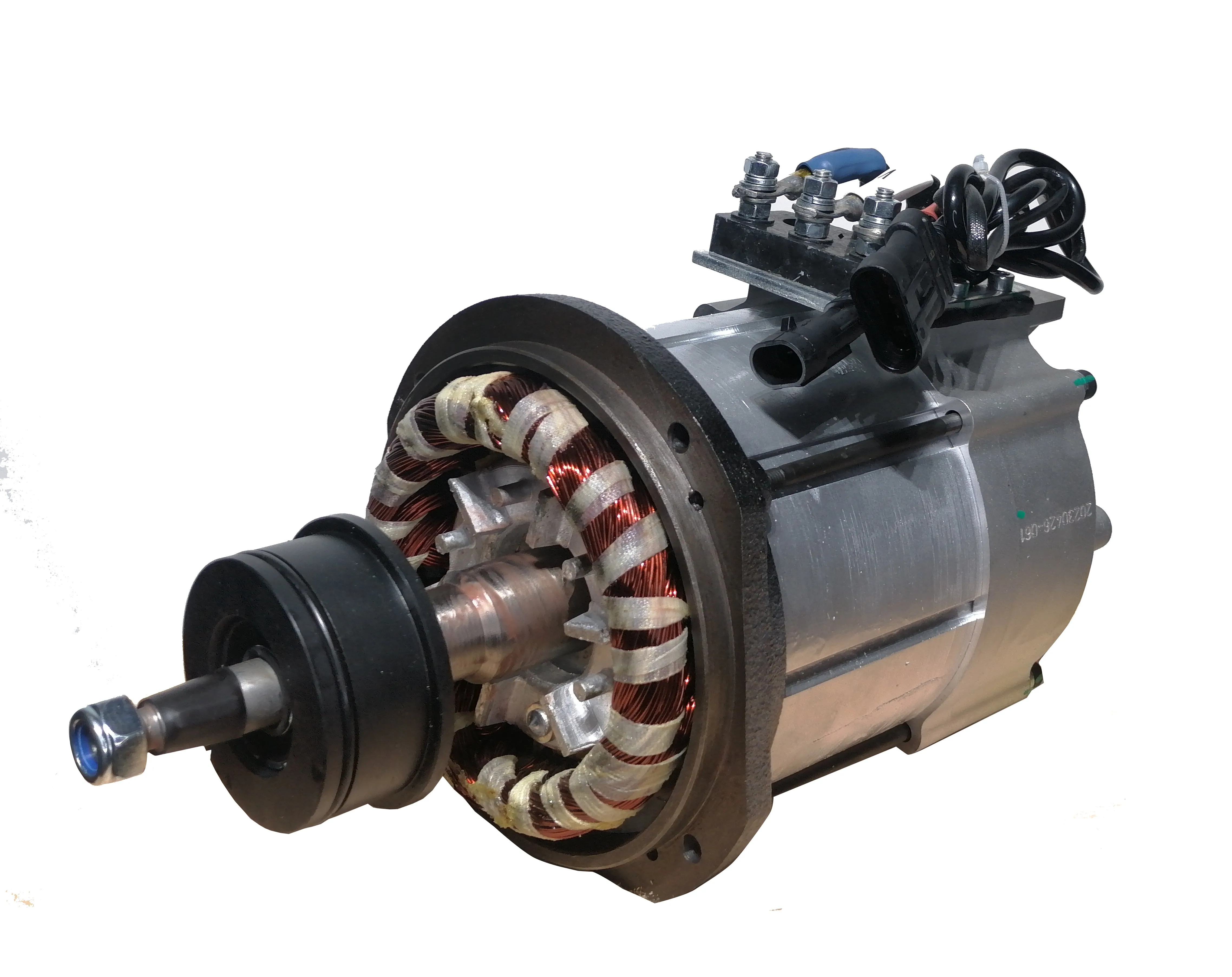

JY-AC-2.2KW
Pallet Jack Power
Peak Power
4.5 kW
Peak Torque
40 Nm
Max Speed
5000 RPM
Voltage
17 V
JY-AC-2.5KW
Heavy-Duty Golf Series
Max Power
4.0 kW
Rated Torque
7.96 Nm
Rated Speed
3000 RPM
Voltage
60 V

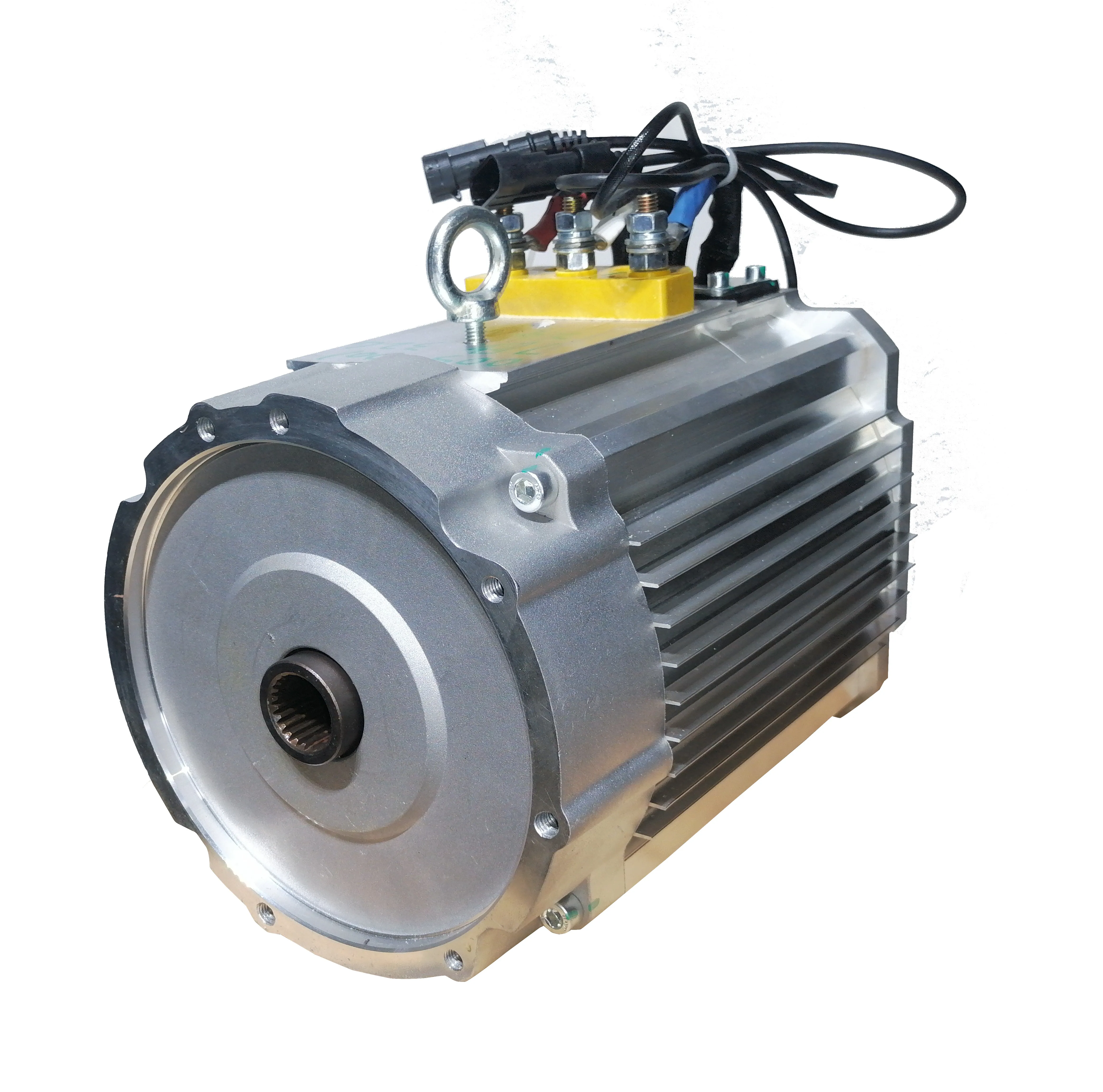

JY-AC-3.0KW
Forced Air Mobility
Peak Power
6.0 kW
Peak Torque
65 Nm
Max Speed
6250 RPM
Voltage
48 V

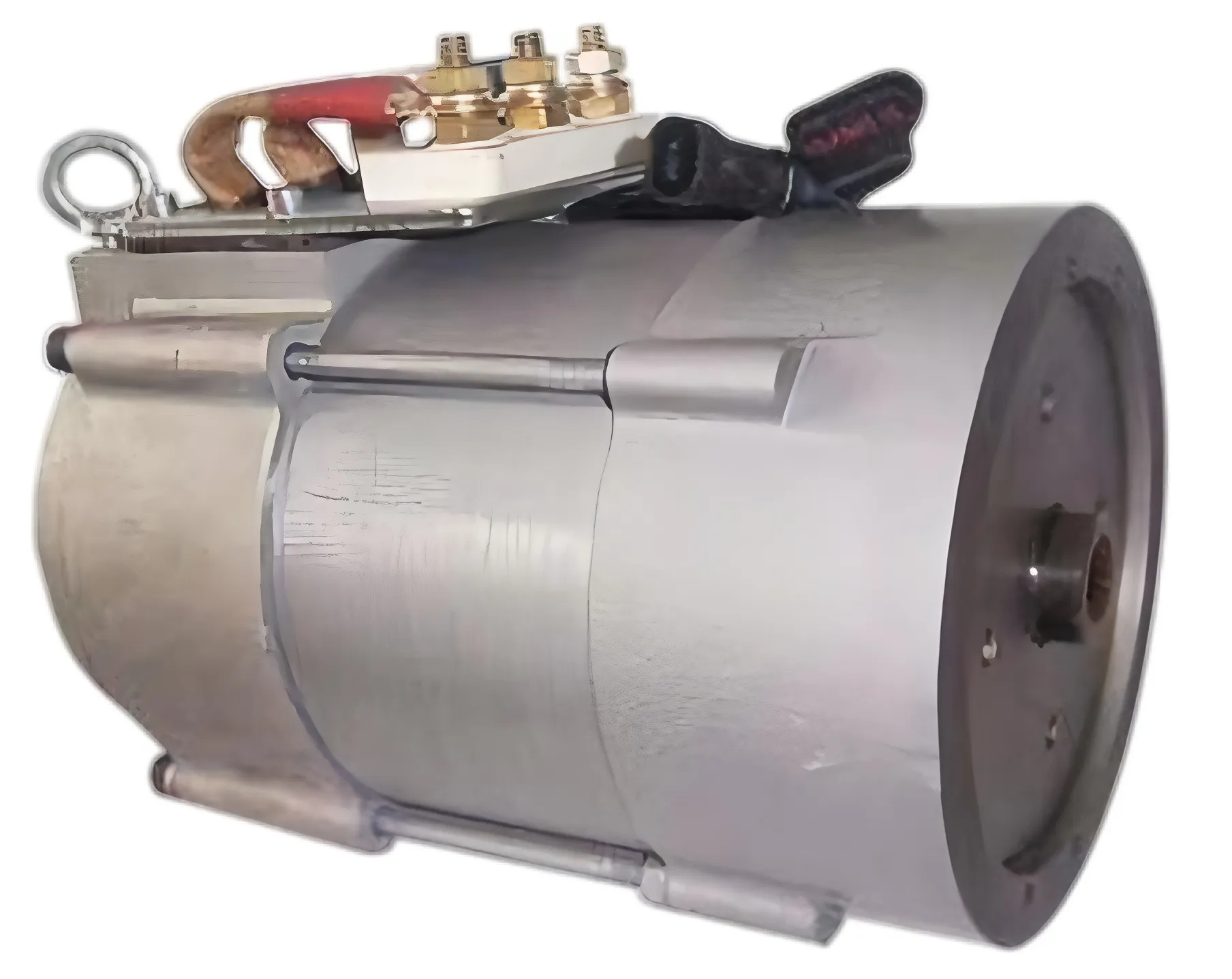

JY-AC-3.5KW
Adaptive OEM Drive Unit
Peak Power
7.0 kW
Rated Torque
11.14 Nm
Max Speed
3000 RPM
Voltage
48-72 V
JY-AC-4.0KW
Forklift Hydraulic Drive
Peak Power
8.0 kW
Peak Torque
60 Nm
Max Speed
5000 RPM
Voltage
33 V
JY-AC-5.0KW
Premium Golf & NEV
Peak Power
10.0 kW
Peak Torque
90 Nm
Max Speed
4500 RPM
Voltage
48-60 V
JY-AC-6.0KW
Premium Sightseeing & Utility
Peak Power
12.0 kW
Rated Torque
19.10 Nm
Rated Speed
3000 RPM
Voltage
72 V

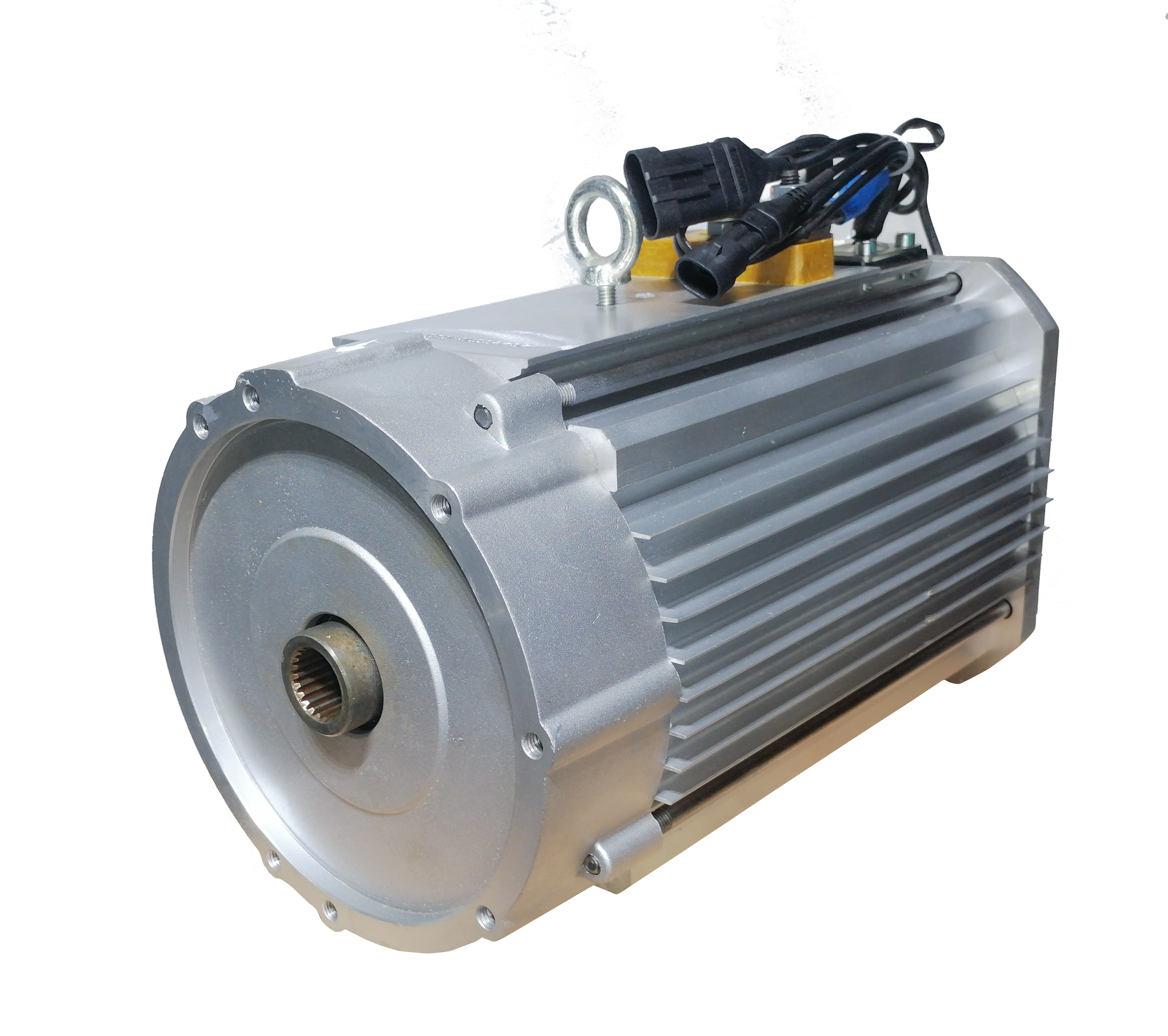

JY-AC-7.5KW
High-End Golf Cart Series
Peak Power
15.0 kW
Peak Torque
140 Nm
Max Speed
6500 RPM
Voltage
72 V
Duty Cycle
S2: 60m
Insulation
Class H
JY-AC-10.0KW
Industrial & Utility Series
Peak Power
20.0 kW
Rated Torque
31.83 Nm
Rated Speed
3000 RPM
Voltage
72-96 V
Insulation
Class F
Shaft Type
18N 6W
B. Mid Power Series (10kW - 40kW)
JY-AC-12.0KW
Electric Forklift Series
Peak Power
25.0 kW
Rated Torque
160 Nm
Max Speed
5000 RPM
Voltage
56 V
Insulation
Class H
Efficiency
88%

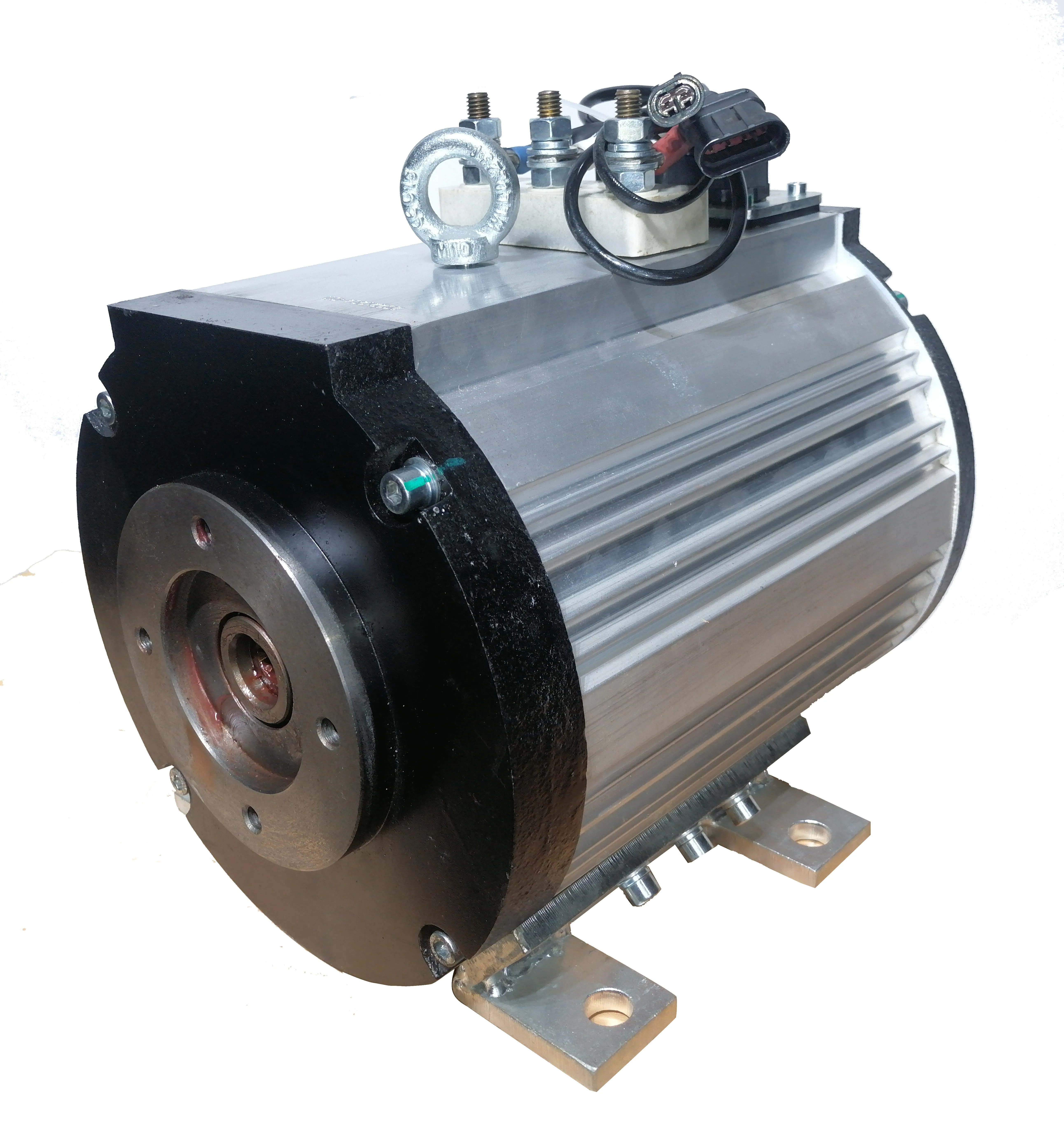

JY-AC-14.0KW
Forklift Oil Pump Specialist
Peak Power
28.0 kW
Rated Torque
160 Nm
Max Speed
5000 RPM
Voltage
56 V
Weight
59 KG
Efficiency
88%

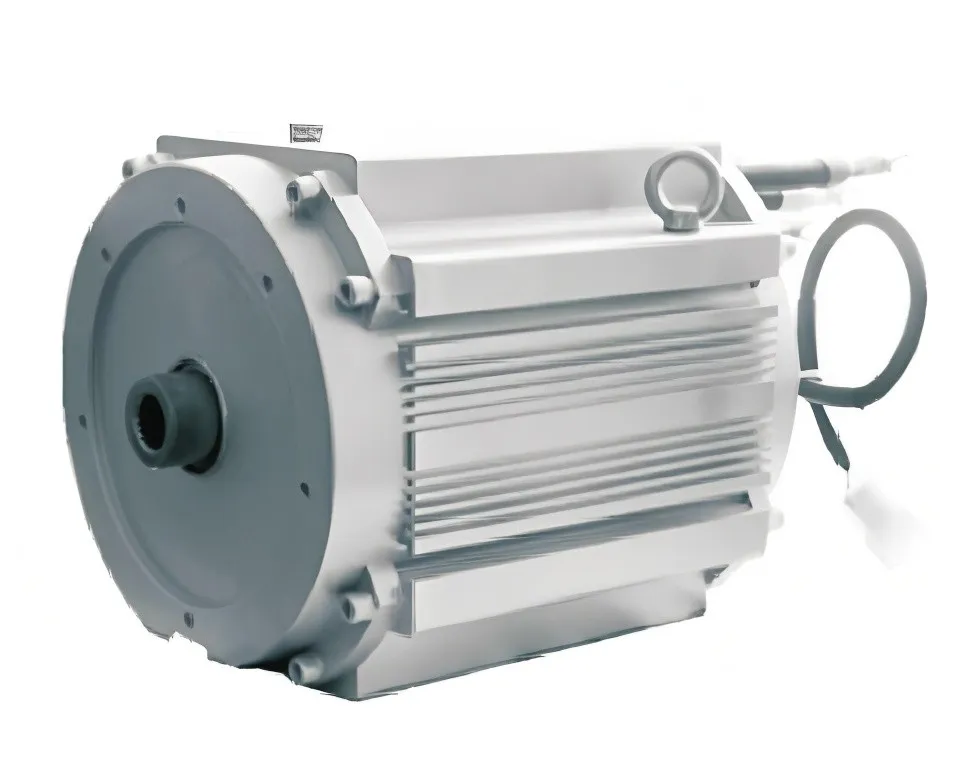

JY-PM-15.0KW
Passenger & Logistics Series
Peak Power
25.0 kW
Peak Torque
140 Nm
Peak Speed
7000 RPM
Rated Speed
4500 RPM
Protection
IP67
Weight
40 KG
JY-PM-20.0KW
Marine & Propulsion Specialist
Power Range
18 - 23 kW
Voltage
360V DC
Peak Speed
1500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous
JY-PM-25.0KW
Advanced Propulsion Series
Power Range
12.5 - 30 kW
Voltage
360V DC
Peak Speed
5500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous

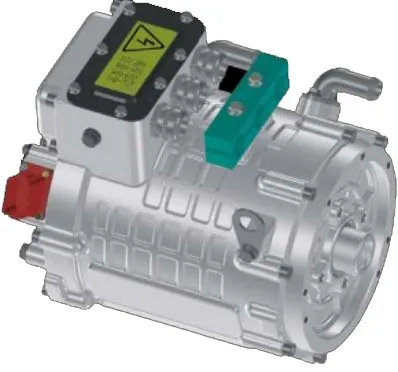

JY-PM-30.0KW
High-Power Propulsion Series
Power Range
22 - 40 kW
Voltage
360V DC
Peak Speed
5500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous
C. Heavy Duty Series (45kW - 100kW)

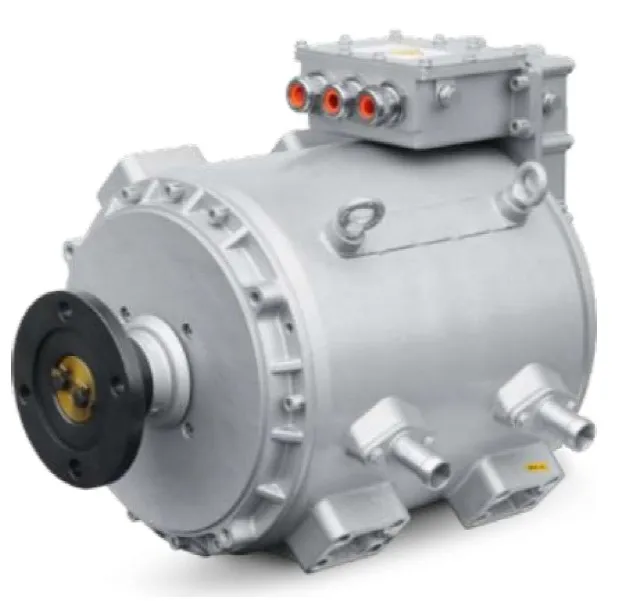

JY-PM-45.0KW
Heavy-Duty Logistics & Bus
Peak Power
55.0 kW
Voltage
540V DC
Peak Speed
1500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous

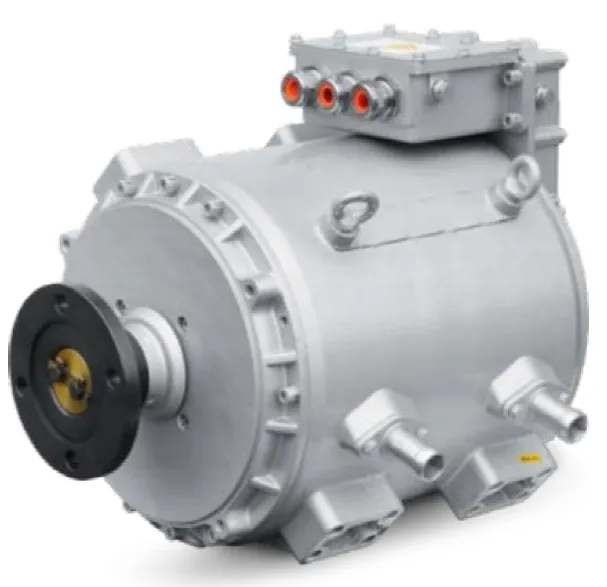

JY-PM-55.0KW
Heavy-Duty Commercial Series
Peak Power
70.0 kW
Rated Torque
140 Nm
Max Speed
7000 RPM
Voltage
540V DC
Cooling
Liquid Cooled
Protection
IP67

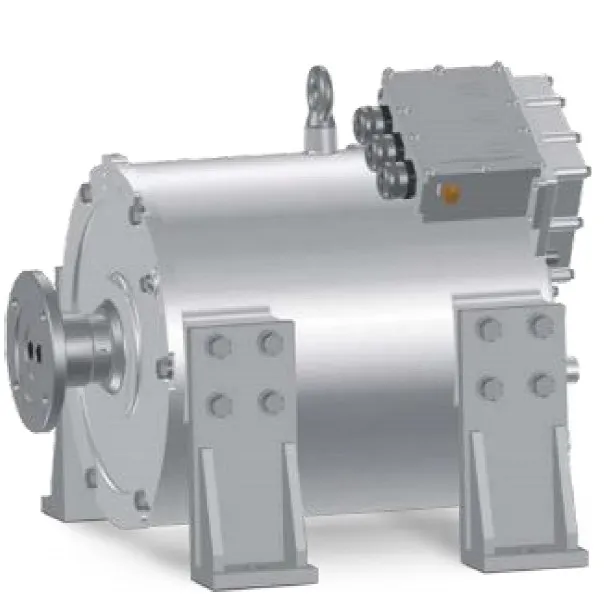

JY-PM-65.0KW
Marine & Heavy Propulsion Series
Power Range
41 - 82 kW
Voltage
540V DC
Peak Speed
1500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous
JY-PM-80.0KW
Heavy-Duty Propulsion & Industrial
Peak Power
82.0 kW
Voltage
540V DC
Peak Speed
1500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous

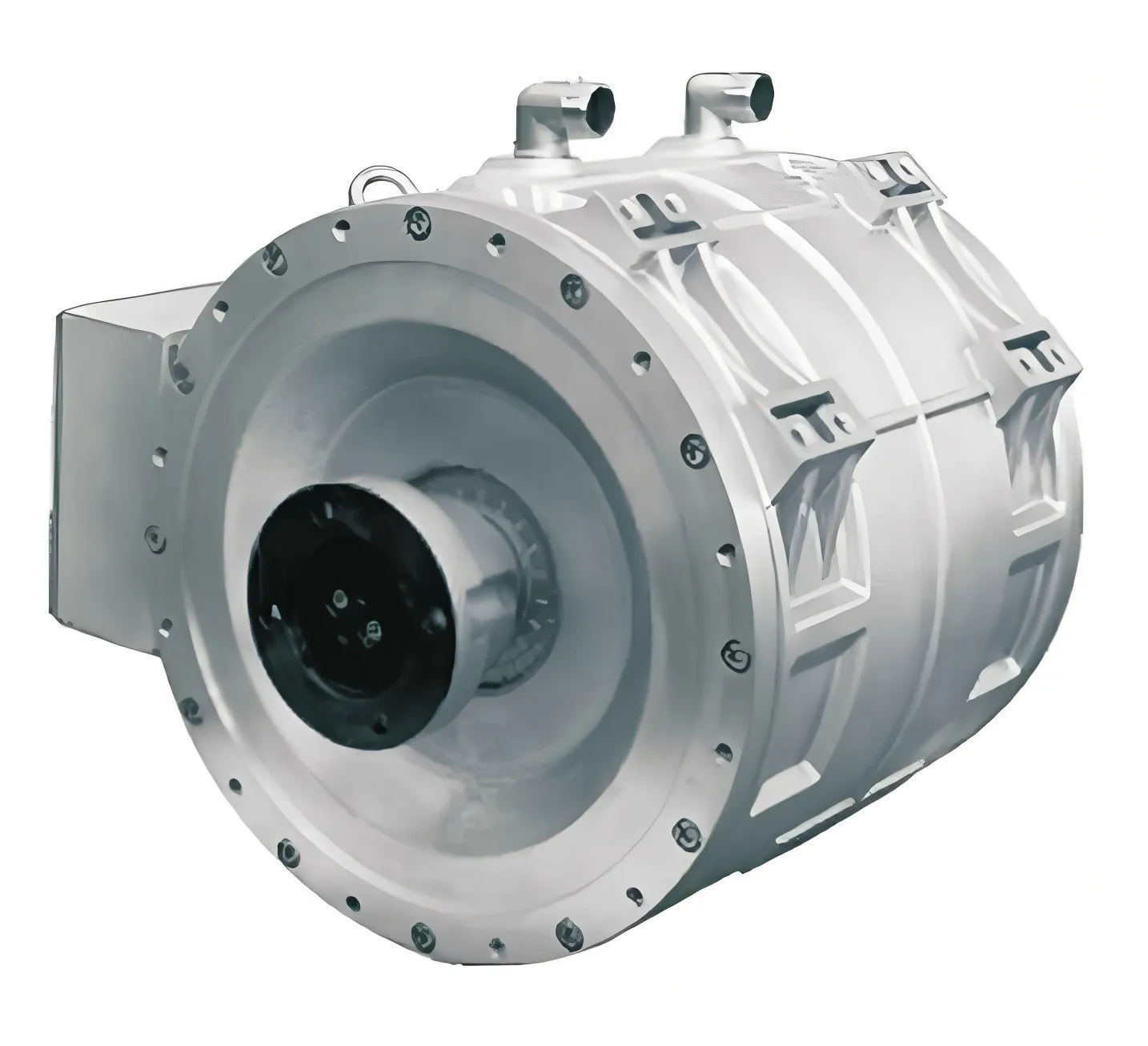

JY-PM-90.0KW
Heavy Commercial Propulsion
Rated Power
90.0 kW
Peak Torque
1800 Nm
Max Speed
4000 RPM
Voltage
540V DC
Cooling
Liquid Cooled
Protection
IP67

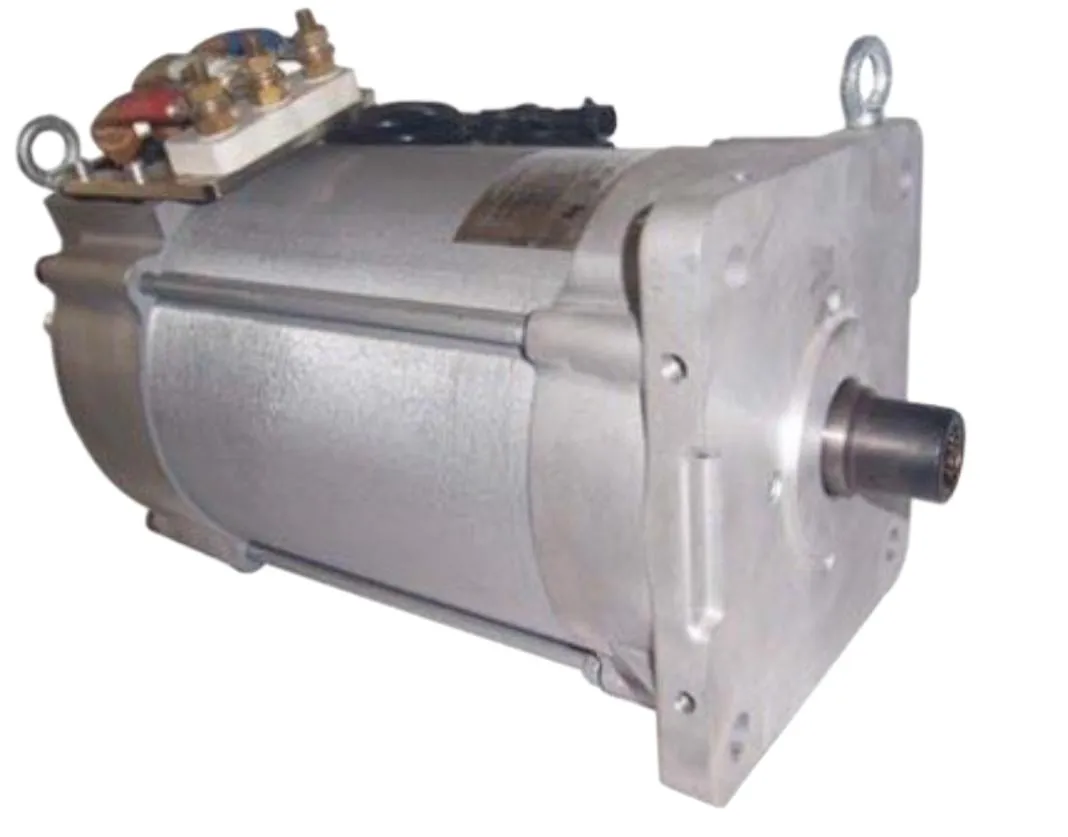

JY-PM-100.0KW
Ultra-Heavy Propulsion & Mining
Rated Power
100.0 kW
Rated Torque
3500 Nm
Max Speed
3500 RPM
Voltage
540V DC
Cooling
Liquid Cooled
Protection
IP67

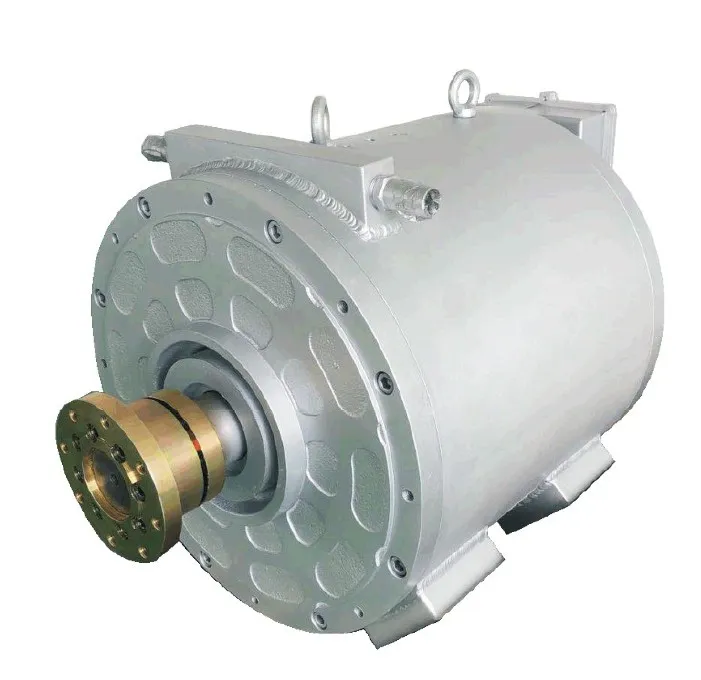

JY-PM-130.0KW
Heavy-Duty Bus & Coach Series
Rated Power
130.0 kW
Peak Torque
2600 Nm
Peak Speed
4000 RPM
Voltage
540V DC
Cooling
Liquid Cooled
Weight
245 KG

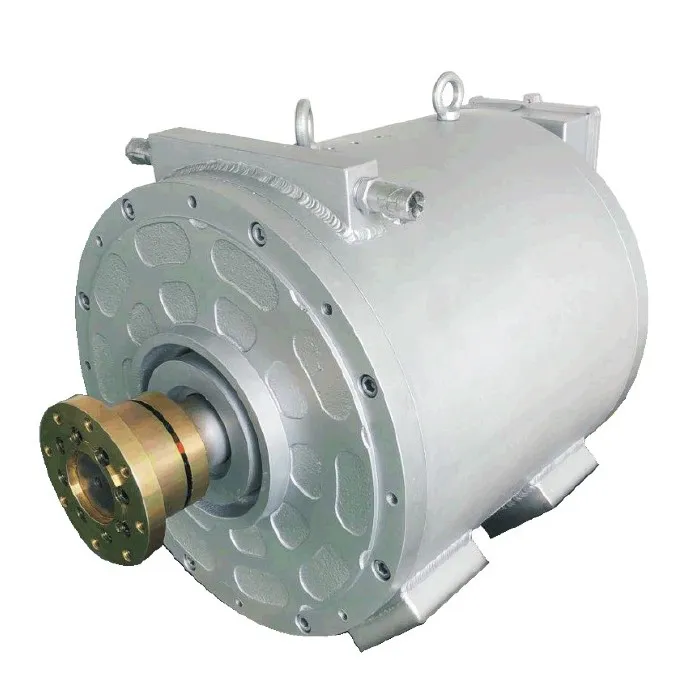

JY-PM-160.0KW
Mega-Power Bus & Industrial Series
Rated Power
160.0 kW
Peak Torque
3500 Nm
Max Speed
3500 RPM
Voltage
540V DC
Cooling
Liquid Cooled
Protection
IP67

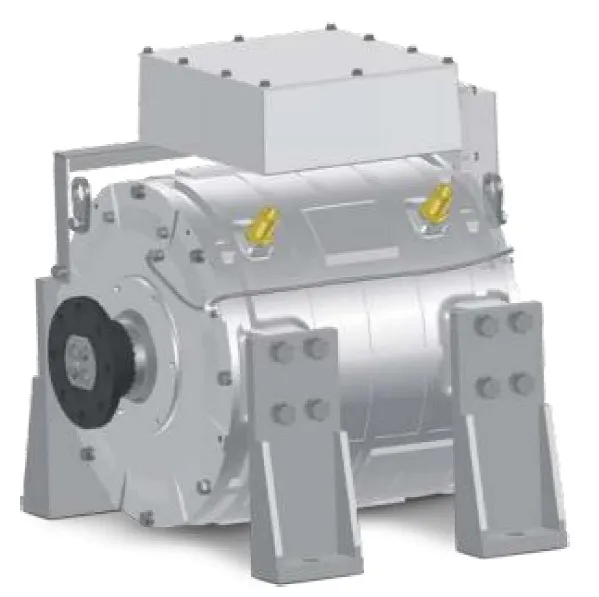

JY-PM-200.0KW
Heavy-Duty Propulsion Specialist
Power Range
102 - 204 kW
Voltage
540V DC
Peak Speed
1500 RPM
Cooling
Liquid Cooled
Protection
IP56
Duty Cycle
S1 Continuous

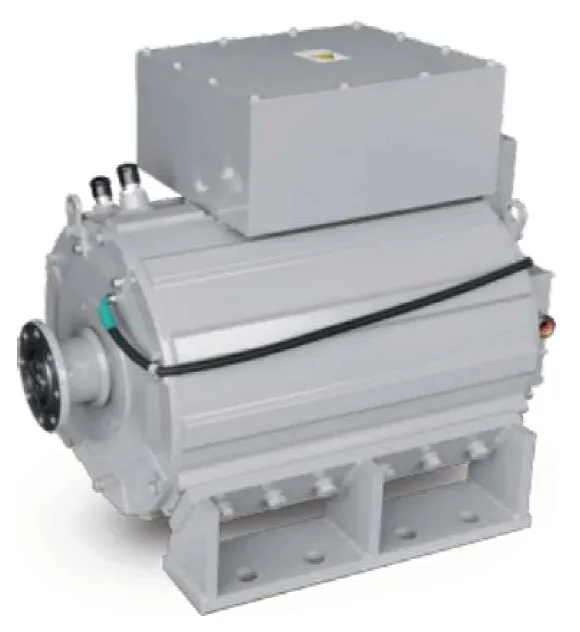

JY-PM-400.0KW
Ultra-Heavy Marine & Industrial
Power Range
200 - 400 kW
Voltage
540V DC
Peak Speed
1500 RPM
Cooling
Liquid Cooled
Protection
IP56
Horsepower
Up to 550 HP
